Name: Bolt Energy 105AH 48 Volt MINI Golf Cart Lithium Battery - Standard Kit
Brand: Elite Custom Golf Carts LLC
SKU: 33-303S
Price: 2495.0 USD
Availability: InStock

$2,495.00

Free Shipping for Orders Over $100 (Continental US Only)

In stock, ready to ship
Backordered, shipping soon

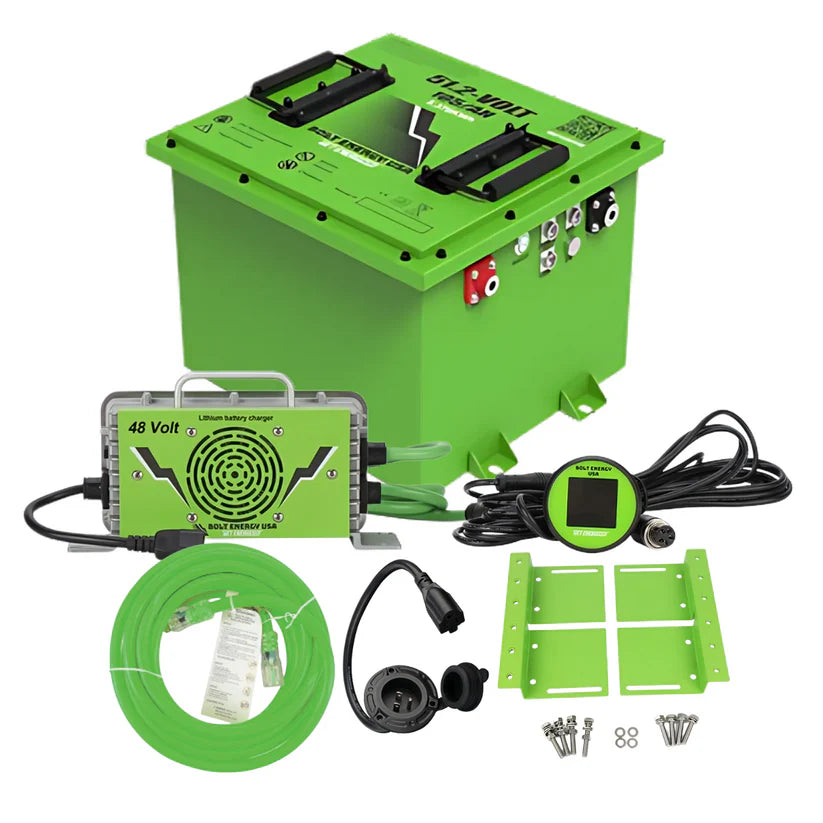

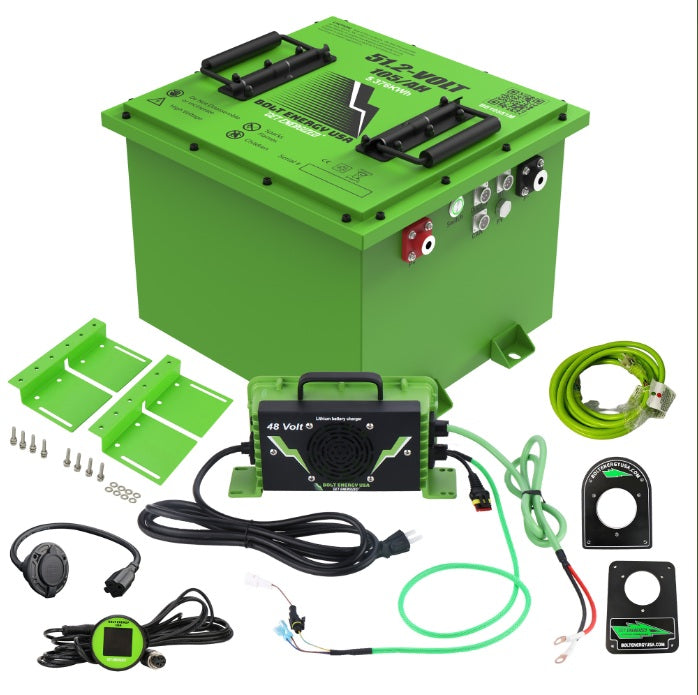

Bolt Energy 105AH 48 Volt Standard Kit - "MINI" HIGH OUTPUT GOLF CART LITHIUM BATTERY

Bolt Energy Batteries are compatible with these golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, EPIC, Evolution, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha. Bolt Energy USA is compatible with many other carts and electric EV vehicles. Please contact us for more information.

The 51V 105Ah “MINI” was developed to be the most versatile golf car battery in the marketplace. There has yet to be a traditional golf car it does not fit in. Designed for use in all 48-volt power trains. Ranges, depending on how extreme the car is modified and how the car is loaded and driven, range from 20 to 50 miles.

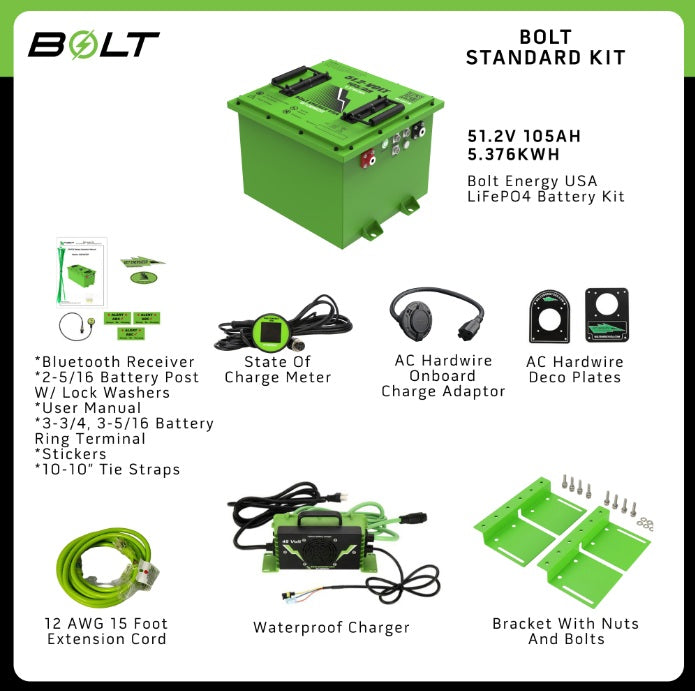

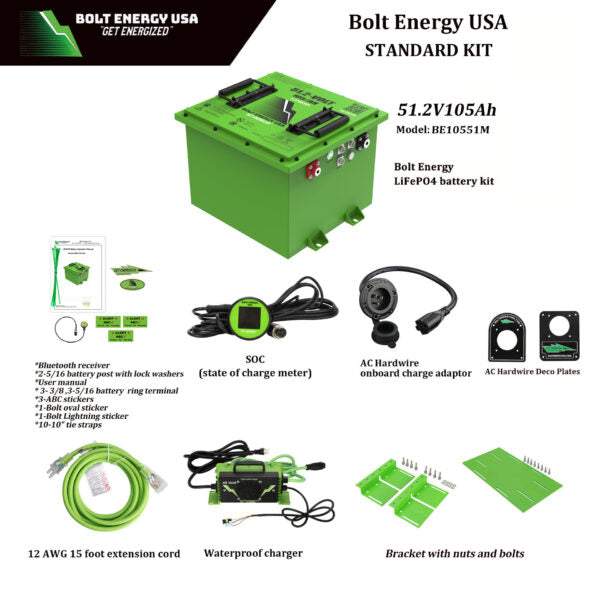

FEATURES

51V-105AH BATTERY
Bluetooth receiver
SOC “state of charge meter”
Owners manual “SIMPLE installation instructions”
6- 3/8 battery ring terminal connectors
10-10″ tie straps
Bolt Energy USA sticker/s
Waterproof high speed charger
Mounting brackets, Nutts & bolts

WANT TO KNOW HOW MANY MILES YOU'LL GET?

Check out Bolt's Distance calculator to determine the range of your Bolt Energy battery

MECHANICAL SPECIFICATIONS

Dimensions (L x W x H): 12.8″ x 12.01″ x 10.42″
Weight: 100.8lbs (45.7kg)
Terminal Type: M8*1.5*25mm
Cell Configuration: 1P16S
Case Material: Powder Coated Steel
Enclosure Protection: Designed with IP66 Stardard
Cell Type – Chemistry: Prismatic- LiFePO4

DISCHARGE SPECIFICATIONS

Maximum Continuous Discharge Current: 250A
Peak Discharge Current: 520A ± 15.6A (30S)
BMS Discharge Current Cut-Off:
- 260 A ± A7.8A (50S)
- 520A ± 15.6A (30S)
BMS Discharge Voltage Cut-Off: 40V
Recommended Low Voltage Disconnect: 48.0V
BMS Reconnect Voltage: 41.6V
Discharge Temperature: -4 to 149°F (-20 to 65°C)

ELECTRICAL SPECIFICATION

Nominal Voltage: 51.2V
Working Voltage: 43.2 – 58.4V
Recommended Voltage: 48.0V – 57.0V
Nominal Capacity: 105Ah
Energy: 5,376Wh
Capacity @ 25A: 252 min
Efficiency: 0.99
Self Discharge: <3% per Month

CHARGE SPECIFICATIONS

Recommended Charge Current: 5 – 52A
Maximum Input Current: 350A
Charge Current Cut-Off: 375A
BMS Charge Voltage Cut-Off: 58.5V
Reconnect Voltage: <58.5V
Charging Temp. Range: 34°F to 140°F (0-60°C)

COMMUNICATION

Bluetooth: Bluetooth receiver
CAN: CAN port for testing battery

For Data Sheet Click Here

INSTALLATION VIDEOS

Bolt Energy USA - Club Car Onward (AC DRIVE) Lithium Battery Conversion Video
